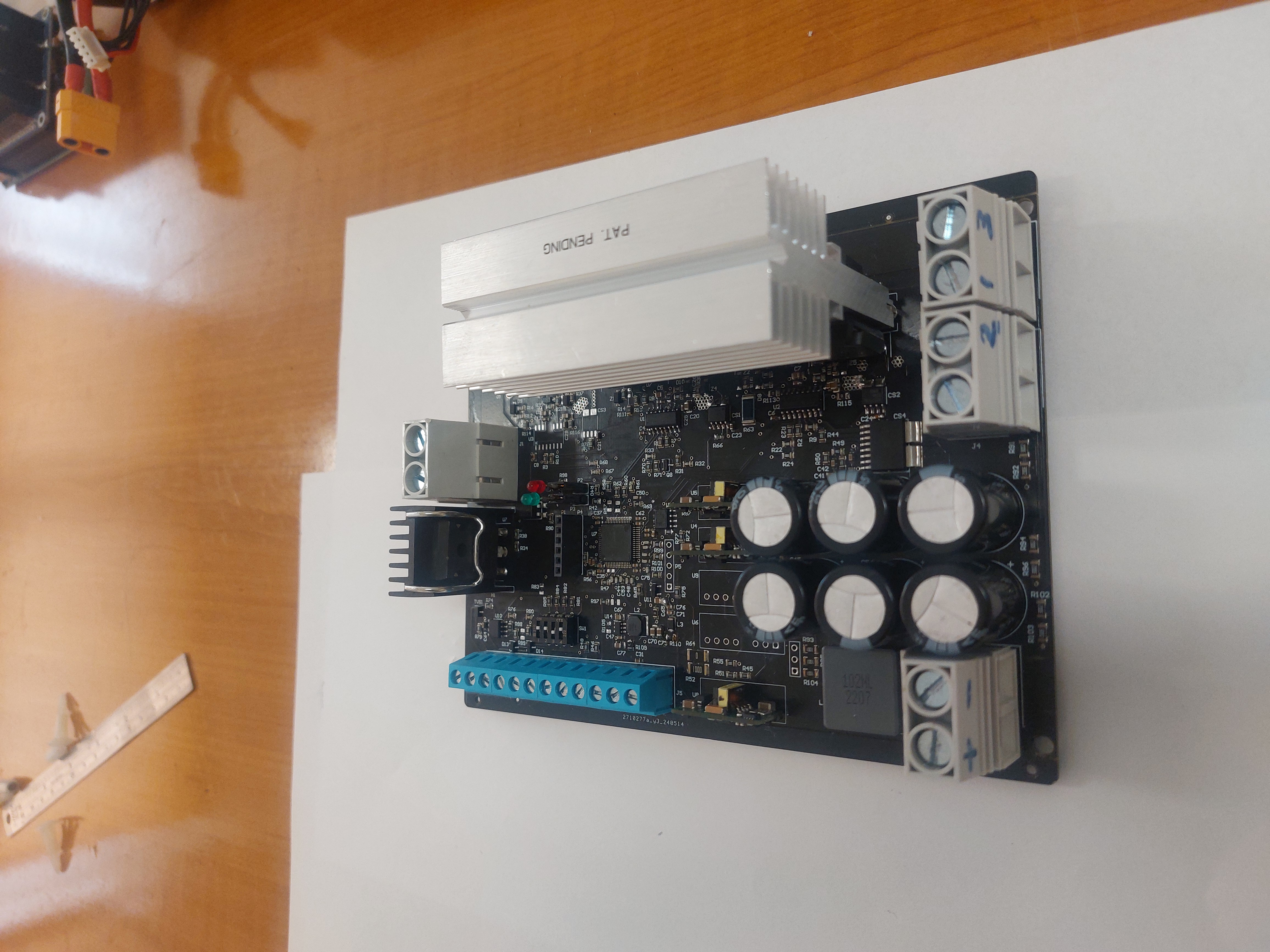

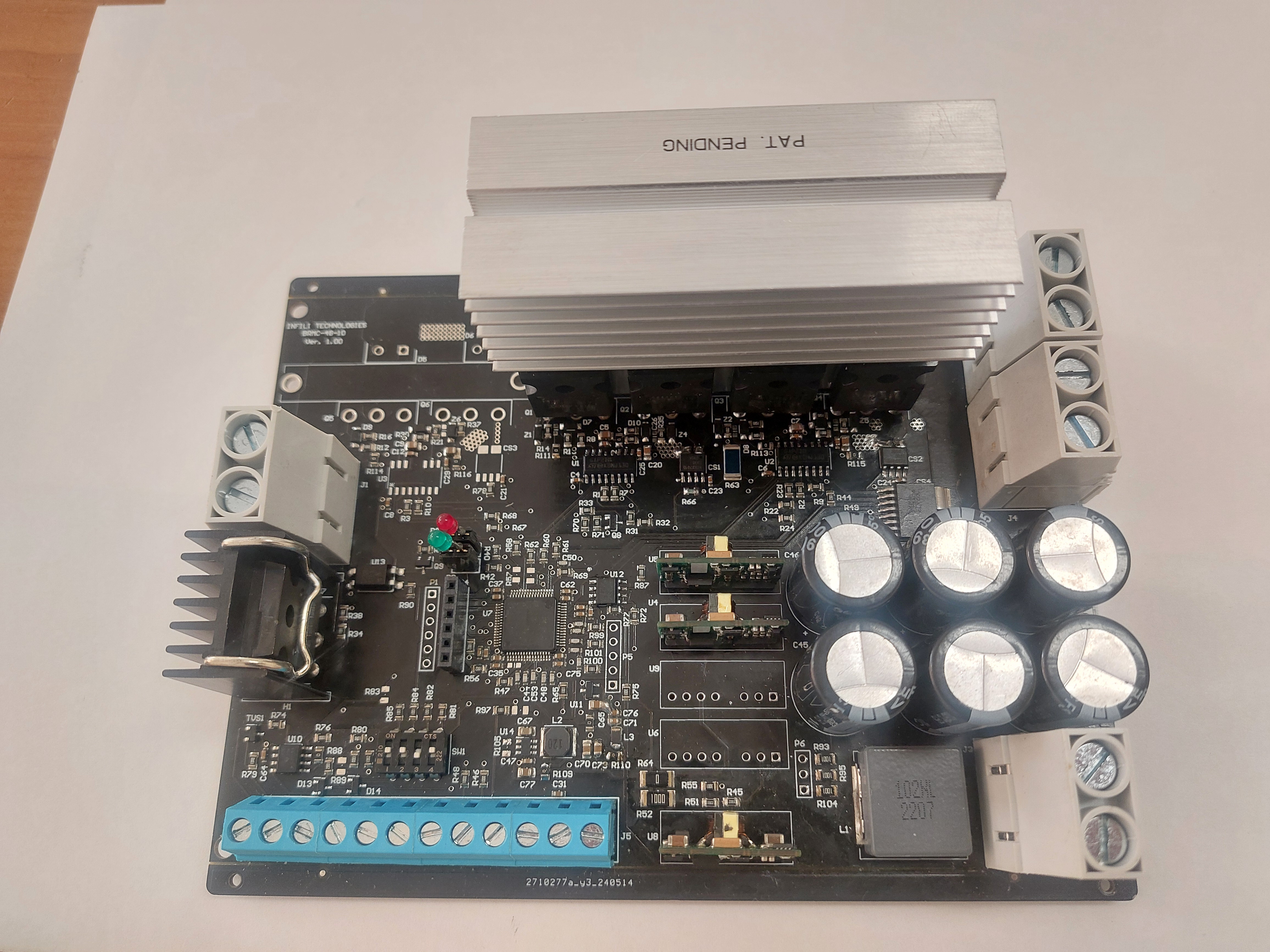

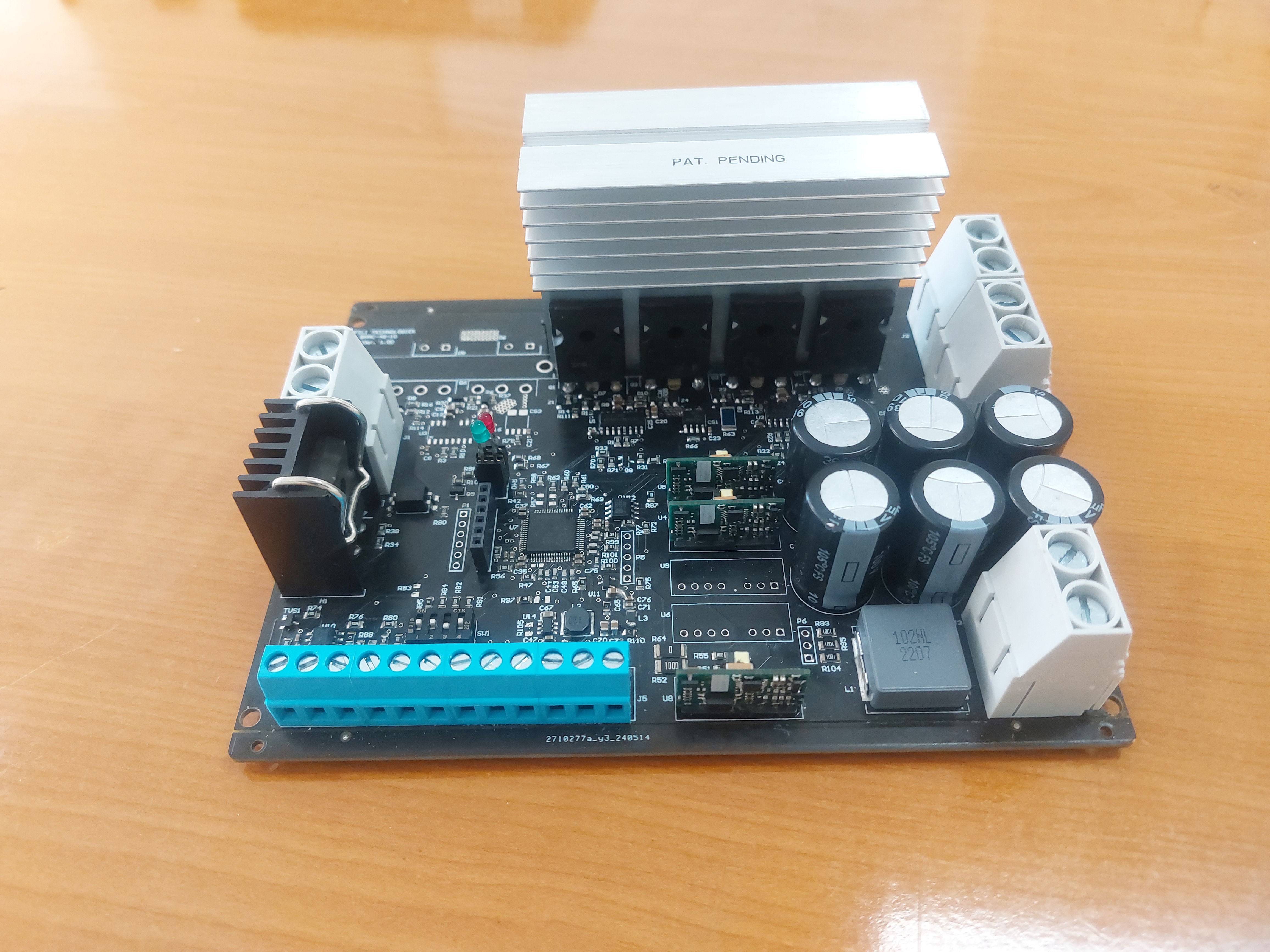

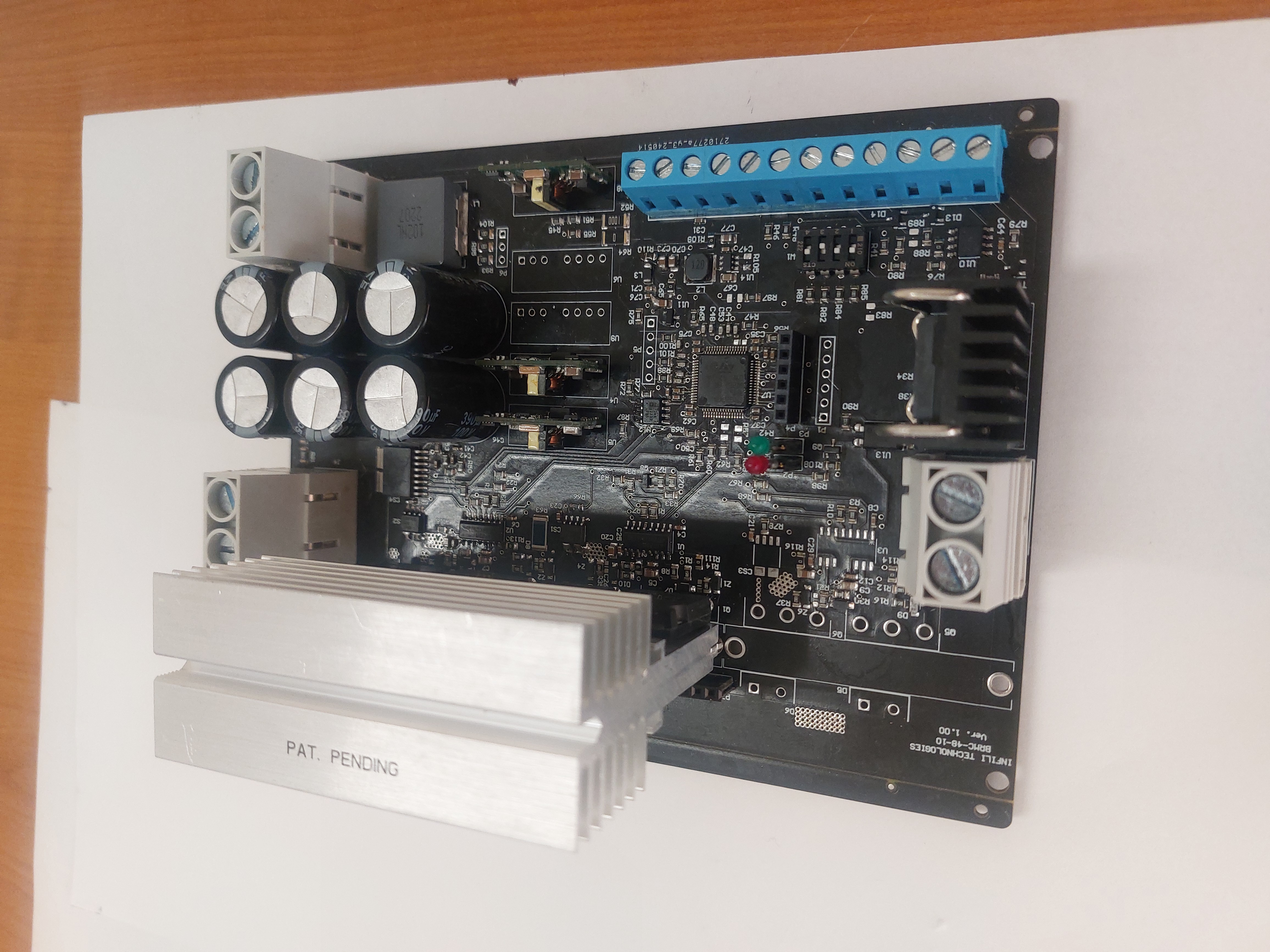

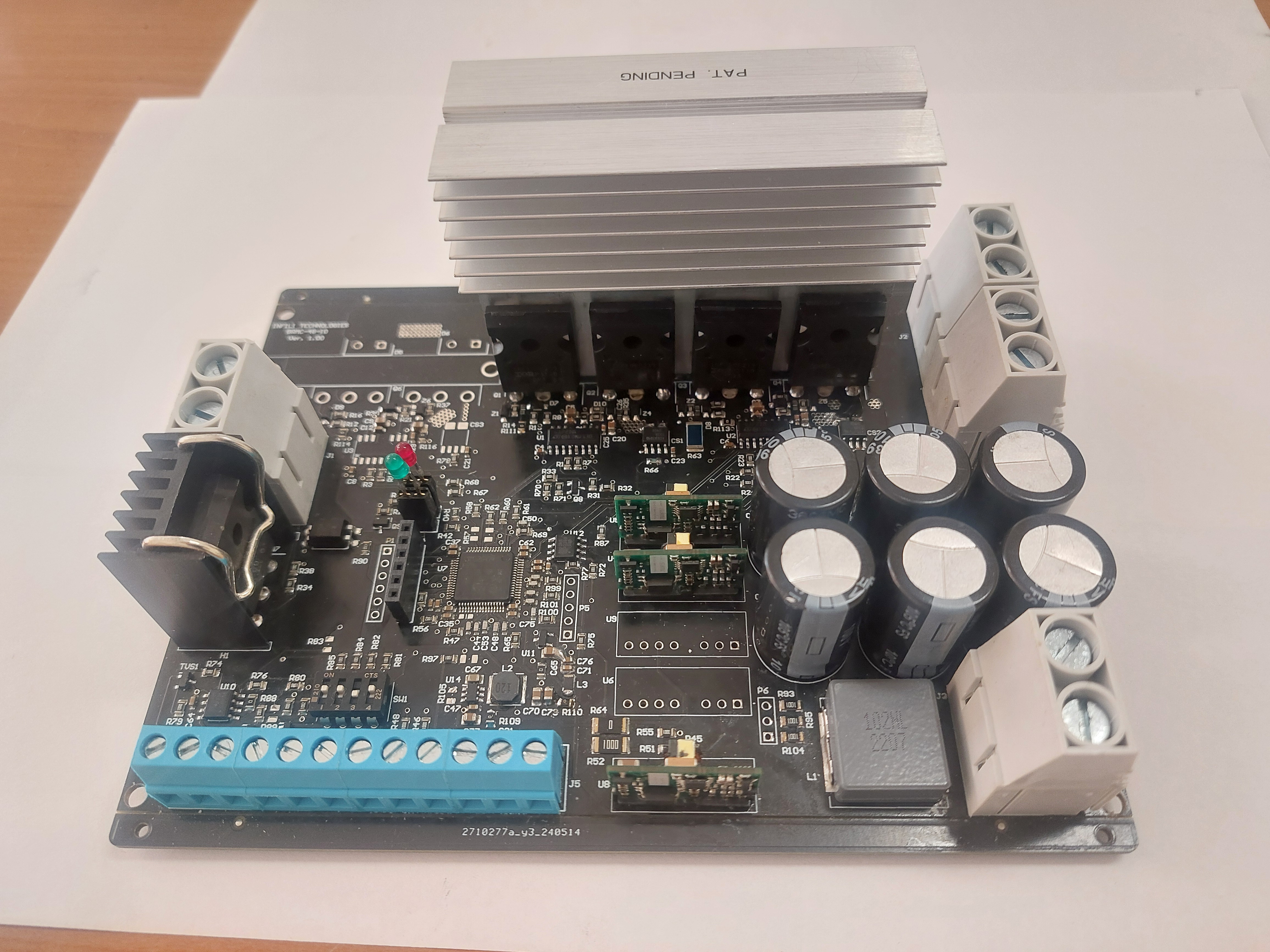

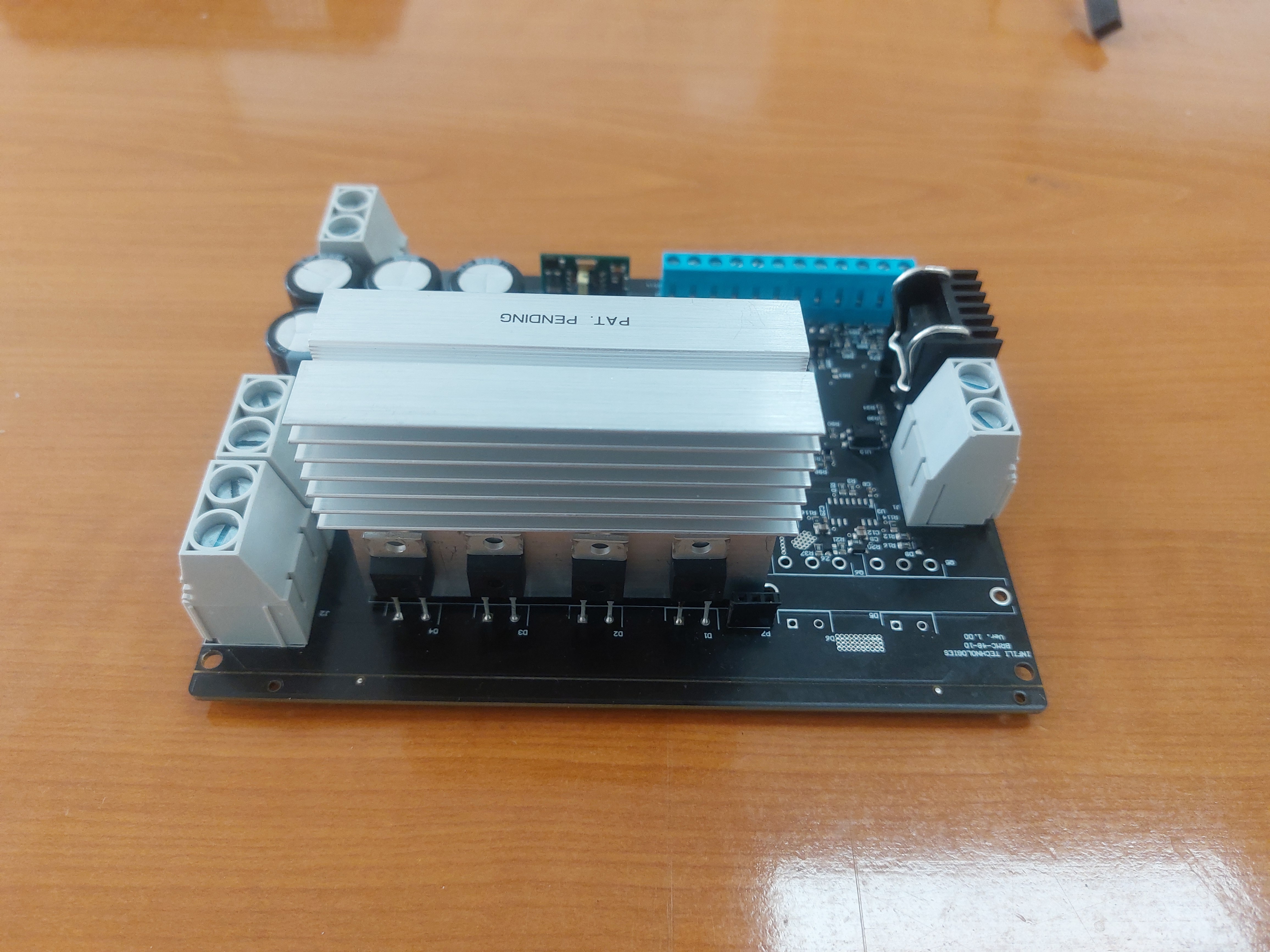

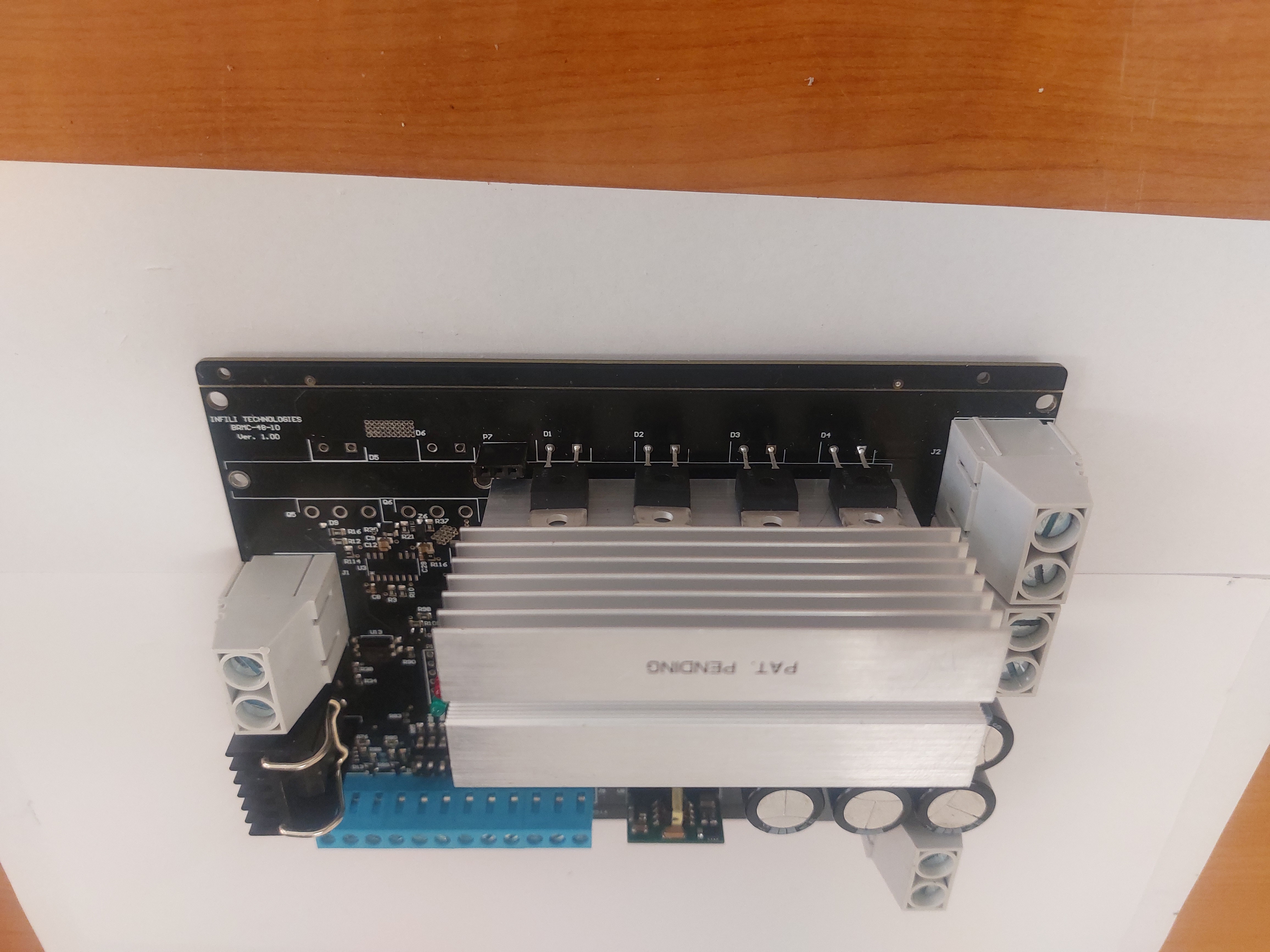

Brushed DC motor controller BMC4810

About Motor Controller

Key Features:

• RS485
• Built-in high-power drivers for brushed DC motor at up to 60A each
• Support for temperature sensors through analog inputs
• Full forward & reverse motor control. Four quadrant operation. Supports regeneration
• Operates from a single 48V power source
• Current limit up to 60A for protecting controller, motor, wiring and battery
• Dedicated connector for quadrature encoders
• Extra Analog and Digital inputs for use as Deadman Switch, Limit Switch, Emergency stop or user inputs
• Open loop or closed loop speed control operation
• Closed loop position control with encoder, analog or pulse/ frequency feedback
• Torque mode
• PID control loop
• Built-in Current, Voltage and Temperature sensors
• Overvoltage and Undervoltage protection
• Watchdog for automatic motor shutdown in case of command loss
• Overtemperature protection
• Diagnostic LED
• Efficient heat sinking. Operates without a fan.
• Dustproof and weather resistant. IP40 rating
• 120mm x 155mm x 60mm
• -40º to +85º C operating environment
• 300g
• Easy configuration, tuning and monitor using provided PC utility
